Features and Advantages of CCM Series Hydraulic Cone Crusher:

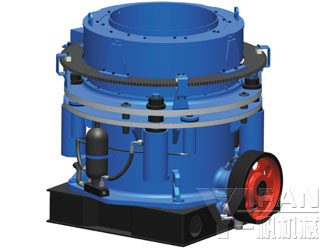

CCM Series Hydraulic Cone Crusher is new series product with high performance,which absorbs the advanced technology in the world. It is suitable to crush hard and mid-hard ores and rocks.

Features and Advantages of CCM Series Hydraulic Cone Crusher:

1. High performance and absorb advanced technology;
2. Fixed main shaft design and potimized cavity,increase crushing capacity;
3. More uniform compostion and better shape of product size;
4. Standard hydraulic design,simple operation and flexible adjustment;
5. Independent design of single acting cylinder,more stable performance;
6. Integrated base and simolified installation steps;
7. Improved structure,function and good shape are integtated.


CCM Series Hydraulic Cone Crusher Technical Data:

Model	Type of Cavity	Max Feeding(mm)	Discharge Range(mm)	Motor Power(kw)	Capacity(t/h)——Open circuit,Closed Discharge (mm)
					> 6	9	13	16	19	22	26	32	38	45	51
CCM738	C	185	22~38	160						180	195	210	225
	M	135	16~32					118	140	163	182	200
	F	95	13~26				95	115	135	160	180
CCM738D	C	76	10-22	160		75	90	105	125	155
	M	54	9~19			75	90	105	120
	F	25	6~16		60	78	95	115
CCM745	EC	235	26~51	220							230	270	320	370	400
	C	211	22~45							210	225	260	310	360
	M	150	16~38					155	175	200	220	260	295
	F	107	13~32				110	135	165	195	225	250
CCM745D	C	78	10-22	220		105	130	160	185	210
	M	53	9~19			105	125	155	180
	F	25	6~16		90	105	125	150
CCM752	EC	299	32-51	315								366	420	480	520
	C	235	26~51								295	350	390	415	475
	M	199	22~45							266	305	338	363	395
	F	135	16~38					198	210	245	275	305	330
CCM752D	C	95	13-26	315			180	205	235	265	290
	M	76	10~22			145	180	205	230	260
	F	45	6~19		120	145	175	200	220
CCM761	EC	335	32-51	400								460	560	615	680
	C	275	26~51								395	475	540	595	630
	M	210	22~45							340	385	462	515	560
	F	150	16~38					285	305	330	365	437	495
CCM761D	C	102	13-26	400			230	280	340	375	410
	M	76	10~22			175	215	270	330	355
	F	45	6~19		145	170	210	265	325

Note:The capacity is total tons per hour passing through crusher at open circuit when crushing medium and below hardness material and bulk density with 1.6x103kg/m3. Capacities are relative to physical character and type of feeding, feeding size and composition and so on.
