CV Sand Maker

CV sand making machine advantage:

New CV series sand making machine is a kind of high-performed sand making equipment with the international advanced level developed and produced by Zhengzhou Yifan Machinery Co., Ltd. through introducing Germany advanced technology. It plays an irreplaceable role in sand making and all kinds of ores fine crushing. In years of research, YIFAN has accumulated rich experience and formed a unique design pattern in sand making machine. Fully considering the equipment problems that may occur during operation, YIFAN greatly reduces the noise and pollution caused by improper operation and vibration. In addition, the biggest characteristic of CV series sand making machine is it adopts the diluted oil lubrication system, which increases the crushing ratio and production to the maximum and makes the products at a much finer level of granularity.

sand making machine

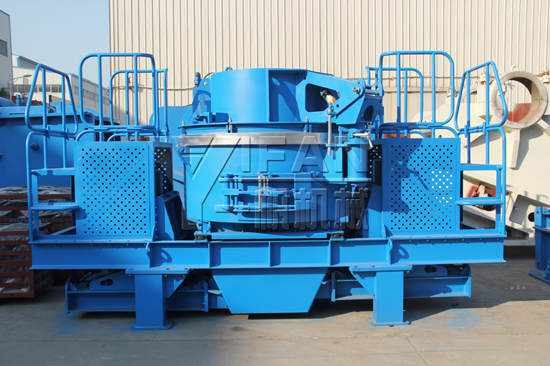

CV sand making machine

CV Series Sand Maker Technical Data:

Model	Speed of Rotor(r/min)	Max Feed Size(mm)	Capacity(t/h)(Central Feeding)		Motor Power(kw)	Dimensions(mm)	Weight(Excluding Motor)(kg)
CV826L	1881-2499	35	60-102	90-176	110	360019692200	≤7055
CV826M			70-126	108-211	132
CV826H			96-150	124-255	160
CV830L	1630-2166	40	109-153	145-260	180	460021502482	≤10000
CV830M			135-200	175-340	220
CV830H			160-243	211-410	264
CV833L	1455-1934	55	165-248	215-415	264	550025633178	≤14020
CV833M			192-286	258-532	320
CV833H			238-350	325-585	400
CV843L	1132-1504	60	230-346	309-577	400	585027403031	≤21040
CV843M			246-373	335-630	440
CV843H			281-405	366-683	500

CVU Series Sand Maker Technical Data:

Model	Speed of Rotor(r/min)	Max Feed Size(mm)	Capacity(t/h)(Central Feeding)		Motor Power(kw)	Dimensions(mm)	Weight(Excluding Motor)(kg)
CVU826L	1881-2499	55	86-143	108-211	110	360019692200	≤6955
CVU826M			98-176	124-253	132
CVU826H			132-210	143-300	160
CVU830L	1630-2166	65	150-212	162-310	180	460021502482	≤9910
CVU830M			186-280	203-408	220
CVU830H			220-340	245-480	264
CVU833L	1455-1934	80	230-338	255-497	264	550025633178	≤13820
CVU833M			268-398	296-562	320
CVU833H			327-485	373-696	400
CVU843L	1132-1504	100	305-467	362-678	400	585027403031	≤21240
CVU843M			335-506	379-746	440
CVU843H			375-540	439-800	500

Note:
1.The capacity is total tons per hour passing through crusher at open circuit when crushing medium and below hardness material and bulk density with 1.6x10³kg/m³.Capacities are relative to physical character and type of feeding,feeding size and composition and so on.
2.CV/CVU can be selected according to your demand.
